The ALD AIR disposable vape is presented as an unusually slim clear-tank device with a large stated liquid capacity. The available details, however, come from an ALD-supplied AH5305-A presentation rather than a retail product page, laboratory report or VAPEAST hands-on test.
This article therefore separates the specifications in that presentation from claims that still need independent verification. Puff count, leak resistance, flavour consistency and first-to-market language should not be treated as guaranteed performance.
Disclosure: The featured image is a manufacturer-supplied promotional graphic. Its “world’s first” slogan has not been independently verified by VAPEAST.
ALD AIR specifications at a glance
| Item | ALD-stated specification | What still needs confirmation |
|---|---|---|
| E-liquid capacity | 15mL | Fill tolerance, ingredients and market-specific versions |
| Puff estimate | Up to 40,000 | Test method, draw duration, output profile and real-world range |
| Body size | 17.5 × 42.3 × 102.1mm | Final production dimensions and weight |
| Battery | 700mAh, rechargeable | Charge time, protection details and usable runtime |
| Charging | USB Type-C | Cable requirements and charging rate |
| Output | 14W | Whether output is fixed or changes during discharge |
| Coil | 0.6-ohm FRESOR Nova Pro | Production resistance tolerance and replacement policy |
These figures reproduce ALD’s presentation; they are not independent measurements. Availability, nicotine strength, flavour range and regulatory status may differ by market.
What the 40,000-puff estimate does—and does not—mean
“Up to 40,000 puffs” is a manufacturer estimate, not a promise that every device will deliver that number. Puff totals can change with draw length, frequency, power behaviour, airflow and the point at which the user considers flavour or vapour output depleted.
The supplied material does not disclose the puff duration, testing machine, rest interval or other protocol used for the estimate. Without that methodology, the figure is best used only as a product-positioning claim—not as a direct comparison with products tested under different conditions.

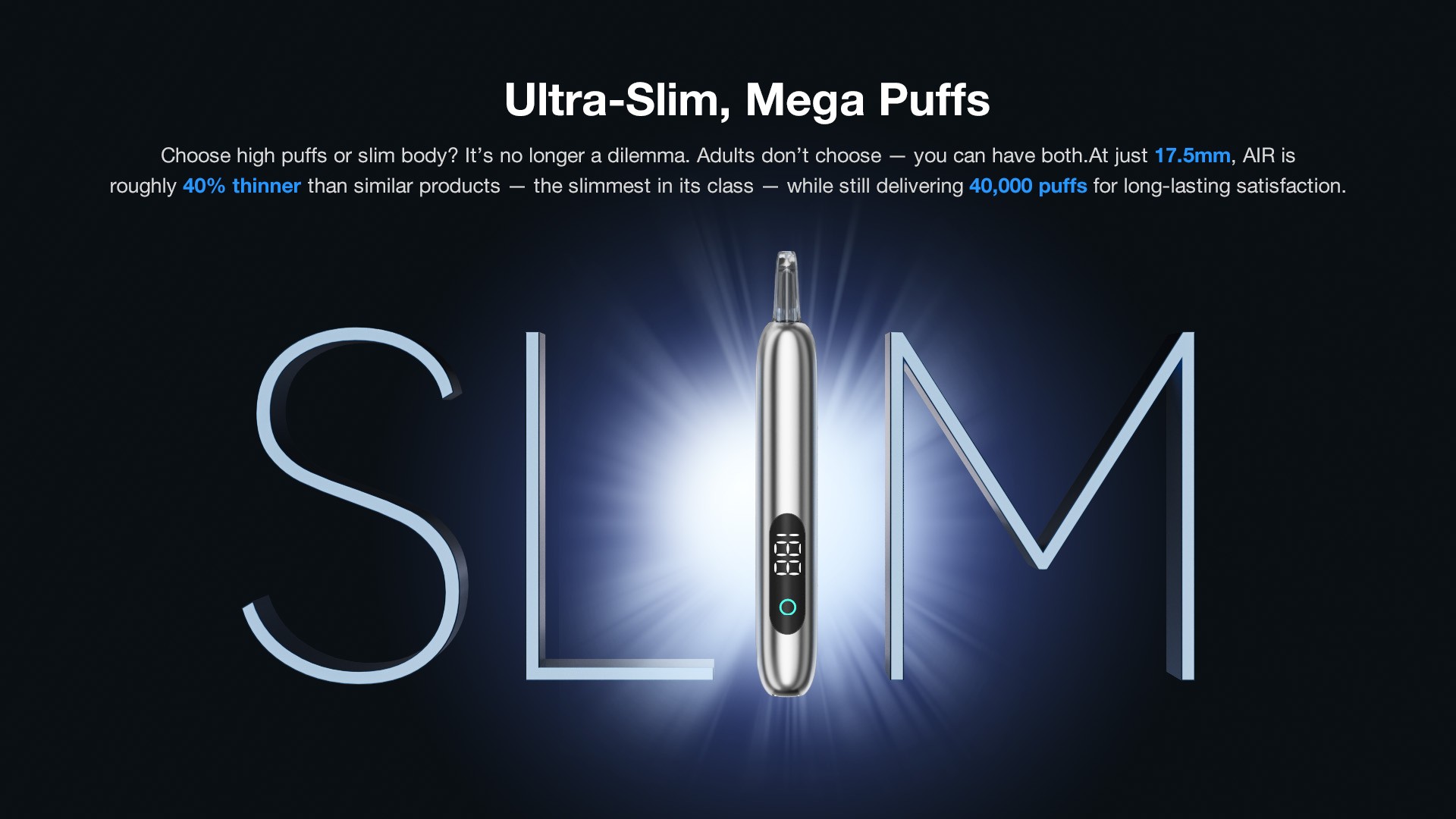

A 17.5mm body with a visible tank
ALD lists the AIR at 17.5mm wide and describes it as 40% thinner than conventional high-puff disposables. The 17.5mm measurement is specific; the 40% comparison is harder to assess because the presentation does not identify a baseline product or dataset.
The transparent tank is intended to make the remaining liquid visible. That can be more informative than relying only on an on-screen percentage, but buyers still need confirmation that the production device uses the same tank and dimensions shown in the presentation.

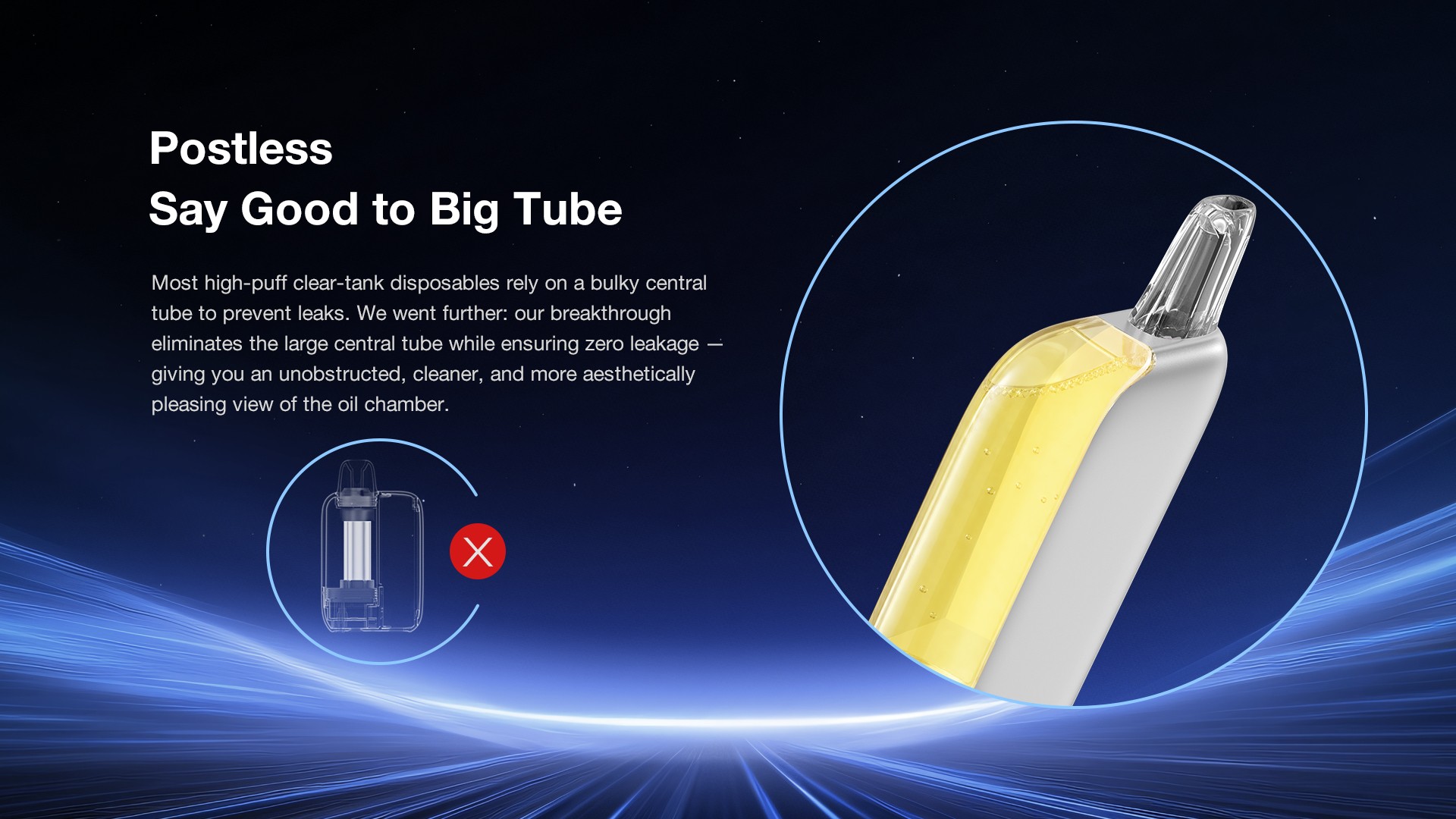

Postless, tube-free tank design
The AIR presentation links the product to ALD’s FRESOR Nova Pro platform. ALD describes that platform as using a postless, tube-free layout designed to reduce internal obstructions and increase usable tank space.
That architecture may explain how the stated 15mL capacity fits into a slim body, but it does not by itself prove leak-free operation. Leakage depends on manufacturing tolerance, seals, liquid viscosity, pressure changes, storage and use. The original “zero leakage” wording should be treated as a design goal until it is supported by independent testing.

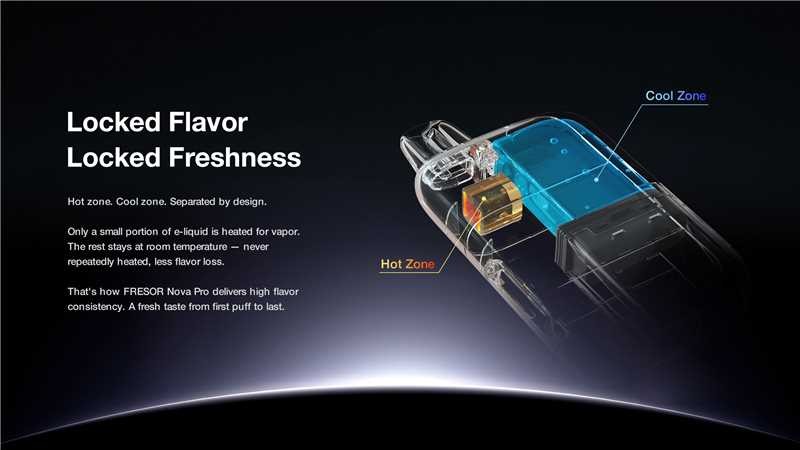

Dual-zone tank and FRESOR Nova Pro coil
ALD says the tank separates a cooler storage area from a warmer atomisation area. The stated aim is to limit repeated heating of the full liquid volume while supplying the coil through a controlled path.
The accompanying FRESOR Nova Pro material describes dual flat-mesh heating elements, layered cotton and capillary auto-refill. These details explain the intended operation, but claims about fresher flavour or stable performance over the full tank remain manufacturer claims until production samples are tested over time.

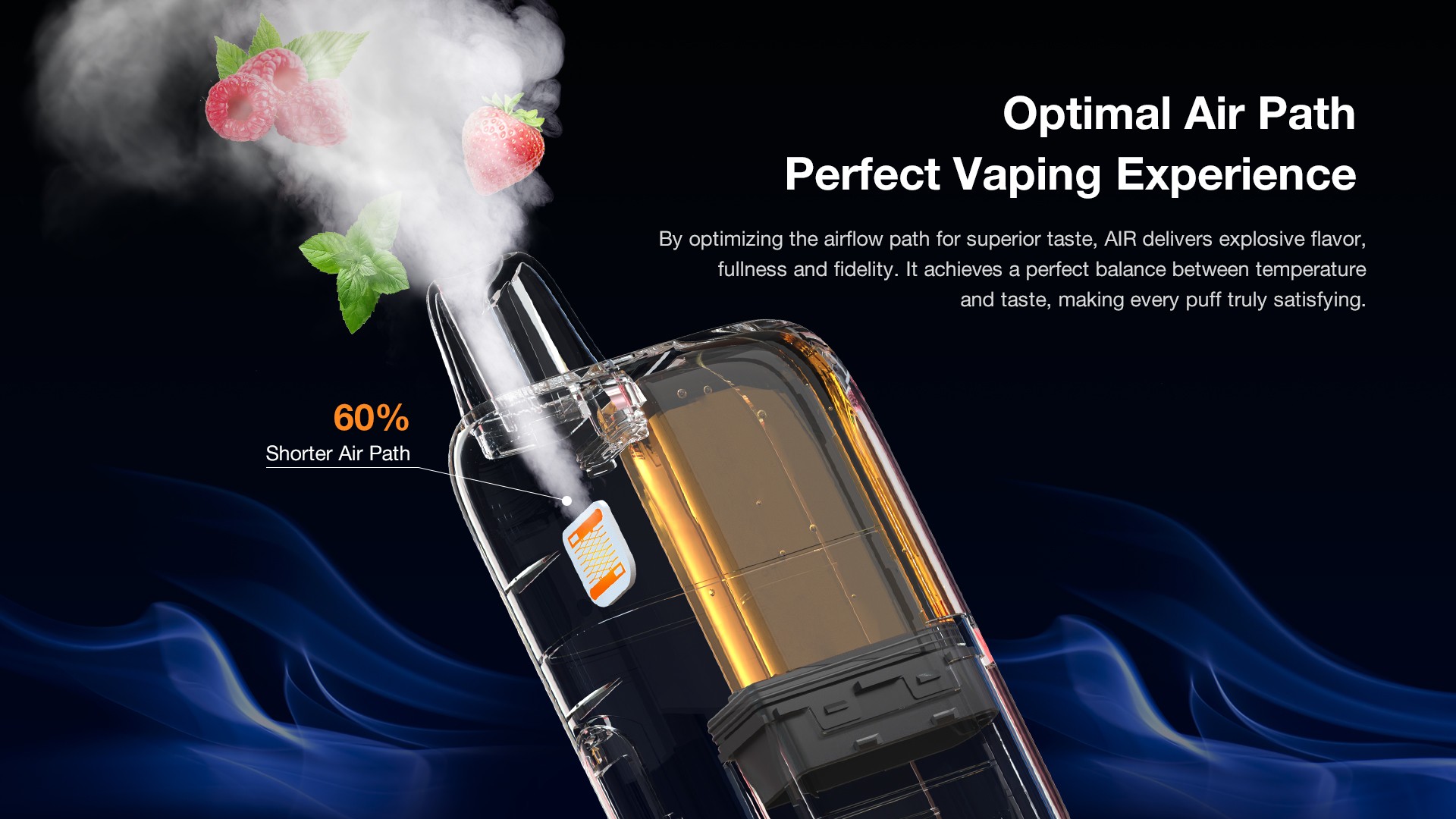

Shorter airflow path: a design claim, not a measured result
Another slide says the AIR has a 60% shorter airflow path than a conventional center-tube design. A shorter path could reduce internal volume between the coil and mouthpiece, but the presentation does not provide the reference geometry, measurement points or comparative pressure data.
Draw quality also depends on inlet size, seals, condensation management and the final production airflow. Those factors cannot be judged reliably from a diagram alone.
Information buyers and distributors still need
- Launch and availability: confirmed sales regions, release date, authorised distributors and retail price.
- Liquid details: nicotine strength, ingredients, flavours, fill tolerance and market-specific variants.
- Puff-test protocol: draw duration, interval, machine settings and the output threshold used to end the test.
- Independent performance data: leakage, charging, battery runtime, output consistency and full-tank flavour testing.
- Compliance: product notifications or authorisations required in each intended market, plus packaging and age restrictions.
- After-sales support: authenticity checks, warranty terms and a process for damaged or leaking devices.
VAPEAST verdict
The ALD AIR concept combines a slim stated width, visible 15mL tank and FRESOR Nova Pro architecture in a way that could interest high-capacity disposable-device buyers. The presentation is detailed enough for a design overview, but not for a hands-on review or a “world’s first” conclusion.
The more accurate takeaway is that ALD is proposing a 17.5mm clear-tank disposable with an up-to-40,000-puff estimate. Final production specifications, test methods, availability and independent performance evidence should be checked before purchasing or distributing it.
Nicotine is addictive, and vaping is not risk-free. Adults who do not use tobacco products should not start. Product legality and market authorisation vary by location.
